EC340H-04 是一款多功能循環定時IC芯片，睡眠低功耗，低至5ua，寬工作電壓范圍，輸入工作電

壓2.4V-5V。IO輸出口可以輸出高電平和低電平兩種狀態。內有8種不同的循環定時模式。定時時間到

自動停止工作，自動開始工作，使用方便，可設定時間為：

                                                                                                10小時ON~ 14小時OFF

                                                                                                   8小時ON~ 16小時OFF

                                                                                                   7小時ON~ 17小時OFF

                                                                                                   6小時ON~ 18小時OFF

                                                                                                   5小時ON~ 19小時OFF

                                                                                                   4小時ON~ 20小時OFF

                                                                                                   3小時ON~ 21小時OFF

                                                                                                   2小時ON~ 22小時OFF

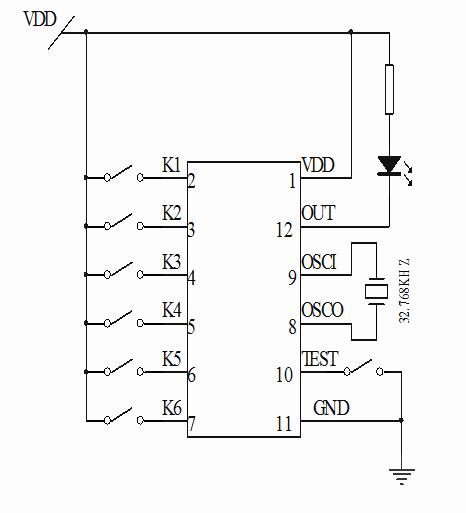

   定時芯片上電后，如果晶振不起振，OUT 輸出高電平。晶振起振后 OUT 輸出低電平，定時時間到

OUT輸出高電平。TEST是定時快速測試按鍵，按下TEST，定時幾小時，OUT就相應的閃幾次。io口高電

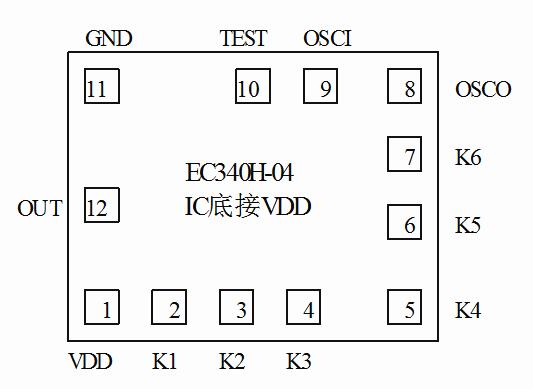

平輸出有20mA、低電平輸出有40mA。定時IC用K1、K2、K3、K4、K5、K6來選擇定時模式，循環定時采

用32.768KHZ晶體振蕩，定時精準無誤差。
